J.R. Industries offers industrial globe valve solutions engineered for dependable flow regulation, throttling and control across demanding process and fluid handling systems.
Discover our collection of industrial globe valves, engineered for dependable flow isolation, durable performance and demanding industrial applications.
Globe valves are widely used in industrial piping systems where accurate flow regulation, throttling and dependable shut-off are required. Their construction allows controlled movement of the valve disc against the seat to regulate flow.
J.R. Industries offers globe valve solutions for industrial applications, including Industrial Globe Valves and Forged Steel Globe Valves, with valve configurations available according to application and customer requirements.
Explore globe valve solutions from J.R. Industries for flow control, throttling and shut-off applications across industrial piping and process systems.

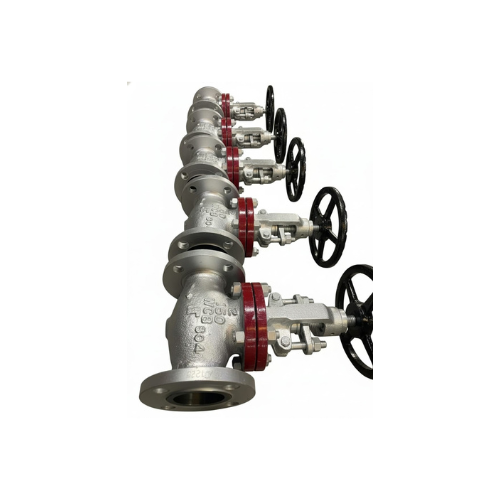

Robust flanged globe valve designed for dependable flow regulation and shut-off in industrial piping systems.

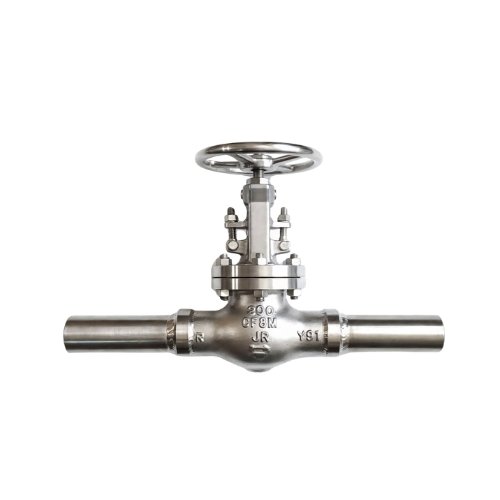

Corrosion-resistant stainless steel construction suitable for demanding industrial and process applications.
Heavy-duty globe valve engineered for industrial piping systems requiring controlled and reliable flow.
Precision-engineered globe valve providing dependable throttling, flow control and shut-off performance.
Compact forged steel globe valve designed for demanding service conditions and reliable industrial flow control.
| Size | L | H | W |
|---|---|---|---|
| 2" | 203 | 315 | 200 |
| 2.5" | 216 | 320 | 200 |
| 3" | 241 | 345 | 250 |
| 4" | 292 | 405 | 250 |
| 5" | 300 | 475 | 300 |
| 6" | 406 | 545 | 350 |
| 8" | 495 | 608 | 450 |
| 10" | 622 | 655 | 550 |
| 12" | 698 | 815 | 600 |
| Size | L | H | W |
|---|---|---|---|
| 2" | 267 | 328 | 200 |
| 2.5" | 292 | 346 | 250 |
| 3" | 318 | 394 | 300 |
| 4" | 456 | 425 | 300 |
| 5" | 400 | 517 | 350 |
| 6" | 444 | 585 | 400 |
| 8" | 559 | 681 | 450 |
| 10" | 622 | 836 | Gear Operation |
| 12" | 711 | 922 | Gear Operation |
| Size | L | H | W |
|---|---|---|---|
| 2" | 292 | 365 | 250 |
| 3" | 356 | 445 | 300 |
| 4" | 432 | 515 | 300 |
| 6" | 559 | 695 | 500 |
| 8" | 660 | 865 | 600 |
| 10" | 787 | 1050 | Gear Operation |
| 12" | 838 | 1185 | Gear Operation |
| Size | L | H | W |
|---|---|---|---|
| 2" | 368 | 485 | 300 |
| 3" | 381 | 575 | 400 |
| 4" | 457 | 795 | 450 |
| 6" | 610 | 875 | 500 |
| 8" | 737 | 910 | 600 |
| 10" | 838 | 1100 | Gear Operation |
| Size | L | H | W |
|---|---|---|---|
| 2" | 368 | 515 | 350 |
| 3" | 470 | 695 | 450 |
| 4" | 546 | 820 | 500 |
| 6" | 705 | 995 | 550 |
| 8" | 832 | 1050 | 600 |
| 10" | 991 | 1165 | Gear Operation |
| Size | L | H | W |
|---|---|---|---|
| 2" | 451 | 605 | 400 |
| 3" | 578 | 735 | 450 |
| 4" | 673 | 885 | 550 |
| 6" | 914 | 1025 | Gear Operation |
| 8" | 1022 | 1165 | Gear Operation |
| 10" | 1270 | 1275 | Gear Operation |
| Parts | WCB | WC6 | CF8 / CF8M |
|---|---|---|---|
| Body | A216 Gr. WCB | A217 Gr. WC6 | CF8 / CF8M |
| Bonnet | A216 Gr. WCB | A217 Gr. WC6 | CF8 / CF8M |
| Plug | WCB + 13%Cr. / CA-15 | CA-15 + STL | CF8 / CF8M / 304 / 316 |
| Stem / Plug Nut | A276-410 | A276-410 | A276-304 / 316 |
| Seat Ring | AISI 410 | AISI 410 / STL | AISI 304 / 316 |
| Backseat Bush | A276-410 | A276-410 | A276-304 / 316 |
| Gland Bush | A276-410 | A276-410 | A276-304 / 316 |
| Gland Flange | IS:2062 Gr.B | IS:2062 Gr.B | CF8 / CF8M |
| Yoke Bush | S.G. Iron | S.G. Iron | S.G. Iron |
| Gland Packing | Graphite | Graphite | Graphite |
| Gasket | SPW316L | SPW316L | SPW316L |
| Body Stud / Nut | B7 / 2H | B16 / 7 | B8-M / 8-M |
| Eye Bolt | CS | CS | SS |
| Hand Wheel | S.G. Iron | S.G. Iron | S.G. Iron |
| Inch | mm | NB | OD | Ft. | RF | PCD | Hole Dia. | N | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 50 | 150 | 14.3 | 92.1 | 120.8 | 19.0 | 4 | 5/8" |
| 2.5 | 65 | 63 | 180 | 15.9 | 104.8 | 140.0 | 19.0 | 4 | 5/8" |
| 3 | 80 | 76 | 190 | 17.5 | 127.0 | 152.0 | 19.0 | 4 | 5/8" |
| 4 | 100 | 100 | 230 | 22.3 | 157.2 | 190.5 | 19.0 | 8 | 5/8" |
| 5 | 125 | 125 | 255 | 22.3 | 185.7 | 216.0 | 22.2 | 8 | 3/4" |
| 6 | 150 | 150 | 280 | 23.9 | 215.9 | 241.0 | 22.2 | 8 | 3/4" |
| 8 | 200 | 200 | 345 | 27.0 | 269.9 | 298.5 | 22.2 | 8 | 3/4" |
| 10 | 250 | 250 | 405 | 28.6 | 323.8 | 362.0 | 25.4 | 12 | 7/8" |
| 12 | 300 | 300 | 485 | 30.2 | 381.0 | 432.0 | 25.4 | 12 | 7/8" |
| 14 | 350 | 337 | 535 | 33.4 | 412.8 | 476.0 | 28.5 | 12 | 1" |
| 16 | 400 | 387 | 595 | 35.0 | 469.9 | 540.0 | 28.5 | 16 | 1" |
| 18 | 450 | 438 | 635 | 38.1 | 533.4 | 578.0 | 31.7 | 16 | 1.1/8" |
| 20 | 500 | 489 | 700 | 41.3 | 584.2 | 635.0 | 31.7 | 20 | 1.1/8" |
| 24 | 600 | 591 | 815 | 46.1 | 692.2 | 749.0 | 34.9 | 20 | 1.1/4" |
| Inch | mm | NB | OD | Ft. | RF | PCD | Hole Dia. | N | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 50 | 165 | 20.7 | 92.1 | 127.0 | 19.0 | 8 | 5/8" |
| 2.5 | 65 | 63 | 190 | 23.9 | 104.8 | 149.2 | 22.2 | 8 | 3/4" |
| 3 | 80 | 76 | 210 | 27.0 | 127.0 | 168.3 | 22.2 | 8 | 3/4" |
| 4 | 100 | 100 | 255 | 30.2 | 157.2 | 200.0 | 22.2 | 8 | 3/4" |
| 5 | 125 | 125 | 280 | 33.4 | 185.7 | 235.0 | 22.2 | 8 | 3/4" |
| 6 | 150 | 150 | 320 | 35.0 | 215.9 | 269.9 | 22.2 | 12 | 3/4" |
| 8 | 200 | 200 | 380 | 39.7 | 269.9 | 330.2 | 25.4 | 12 | 7/8" |
| 10 | 250 | 250 | 445 | 46.1 | 323.8 | 387.4 | 28.5 | 16 | 1" |
| 12 | 300 | 300 | 520 | 49.3 | 381.0 | 450.8 | 31.7 | 16 | 1.1/8" |
| 14 | 350 | 337 | 585 | 52.4 | 412.8 | 514.4 | 31.7 | 20 | 1.1/8" |
| 16 | 400 | 387 | 650 | 55.6 | 469.9 | 571.5 | 34.9 | 20 | 1.1/4" |
| 18 | 450 | 438 | 710 | 58.8 | 533.4 | 628.6 | 34.9 | 24 | 1.1/4" |
| 20 | 500 | 489 | 775 | 62.0 | 584.2 | 685.8 | 34.9 | 24 | 1.1/4" |
| 24 | 600 | 591 | 915 | 68.3 | 692.2 | 812.8 | 41.2 | 24 | 1.1/2" |
| Inch | mm | NB | OD | Ft. | RF | PCD | Hole Dia. | N | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 50 | 165 | 25.4 | 92.1 | 127.0 | 19.0 | 8 | 5/8" |
| 2.5 | 65 | 63 | 190 | 28.6 | 104.8 | 149.2 | 22.2 | 8 | 3/4" |
| 3 | 80 | 76 | 210 | 31.8 | 127.0 | 168.3 | 22.2 | 8 | 3/4" |
| 4 | 100 | 100 | 275 | 38.1 | 157.2 | 215.9 | 25.4 | 8 | 7/8" |
| 5 | 125 | 125 | 330 | 44.5 | 185.7 | 266.7 | 28.5 | 8 | 1" |
| 6 | 150 | 150 | 355 | 47.7 | 215.9 | 292.1 | 28.5 | 12 | 1" |
| 8 | 200 | 200 | 420 | 55.6 | 269.9 | 349.2 | 31.7 | 12 | 1.1/8" |
| 10 | 250 | 250 | 510 | 63.5 | 323.8 | 431.8 | 34.9 | 16 | 1.1/4" |
| 12 | 300 | 300 | 560 | 66.7 | 381.0 | 489.0 | 34.9 | 20 | 1.1/4" |
| 14 | 350 | 337 | 605 | 69.9 | 412.8 | 527.0 | 38.1 | 20 | 1.1/8" |
| 16 | 400 | 387 | 685 | 76.2 | 469.9 | 603.2 | 41.2 | 20 | 1.1/2" |
| 18 | 450 | 438 | 745 | 82.6 | 533.4 | 654.0 | 44.5 | 20 | 1.5/8" |
| 20 | 500 | 489 | 815 | 88.9 | 584.2 | 723.9 | 44.5 | 24 | 1.5/8" |
| 24 | 600 | 591 | 940 | 102 | 692.2 | 838.2 | 50.8 | 24 | 1.1/2" |
| Inch | mm | NB | OD | Ft. | RF | PCD | Hole Dia. | N | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 47.5 | 215 | 38.1 | 92.1 | 165.1 | 25.4 | 8 | 7/8" |
| 2.5 | 65 | 57.2 | 245 | 41.3 | 104.8 | 190.5 | 28.5 | 8 | 1" |
| 3 | 80 | 72.9 | 240 | 38.1 | 127.0 | 190.5 | 25.4 | 8 | 7/8" |
| 4 | 100 | 98.3 | 290 | 44.5 | 157.2 | 235.0 | 31.7 | 8 | 1.1/8" |
| 5 | 125 | 120.7 | 350 | 50.8 | 185.7 | 279.4 | 34.9 | 8 | 1.1/4" |
| 6 | 150 | 146.1 | 380 | 55.6 | 215.9 | 317.5 | 31.7 | 12 | 1.1/8" |
| 8 | 200 | 190.5 | 470 | 63.5 | 269.9 | 393.7 | 38.1 | 12 | 1.3/8" |
| 10 | 250 | 238.0 | 545 | 69.9 | 323.8 | 469.9 | 38.1 | 16 | 1.3/8" |
| 12 | 300 | 282.4 | 610 | 79.4 | 381.0 | 533.4 | 38.1 | 20 | 1.3/8" |
| 14 | 350 | 311.2 | 640 | 85.8 | 412.8 | 558.8 | 41.2 | 20 | 1.1/2" |
| 16 | 400 | 355.6 | 705 | 88.9 | 469.9 | 616.0 | 44.4 | 20 | 1.5/8" |
| 18 | 450 | 400.0 | 785 | 101.6 | 533.4 | 685.8 | 50.8 | 20 | 1.7/8" |
| 20 | 500 | 444.0 | 855 | 108.0 | 584.2 | 749.3 | 53.9 | 20 | 2" |
| 24 | 600 | 533.4 | 1040 | 139.7 | 692.2 | 901.7 | 66.6 | 20 | 2.1/2" |
| Inch | mm | NB | OD | Ft. | RF | PCD | Hole Dia. | N | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 47.5 | 50 | 215 | 38.1 | 92.1 | 165.1 | 25.4 | 8 | 7/8" |
| 2.5 | 57.2 | 63 | 245 | 41.3 | 104.8 | 190.5 | 28.5 | 8 | 1" |
| 3 | 70 | 76 | 265 | 47.7 | 127.0 | 203.2 | 32.0 | 8 | 1.1/8" |
| 4 | 92 | 100 | 310 | 54.0 | 157.2 | 241.3 | 35.0 | 8 | 1.1/4" |
| 5 | 111 | 125 | 375 | 73.1 | 185.7 | 292.1 | 41.2 | 8 | 1.1/2" |
| 6 | 136.4 | 150 | 395 | 82.6 | 215.9 | 317.5 | 38.0 | 12 | 1.3/8" |
| 8 | 177.8 | 200 | 485 | 92.1 | 269.9 | 393.7 | 44.4 | 12 | 1.5/8" |
| 10 | 222.3 | 250 | 585 | 108.0 | 323.8 | 482.6 | 50.8 | 12 | 1.7/8" |
| 12 | 263.4 | 300 | 675 | 123.9 | 381.0 | 571.5 | 54.0 | 16 | 2" |
| 14 | 288.8 | 337 | 750 | 133.4 | 412.8 | 635.0 | 60.0 | 16 | 2.1/4" |
| 16 | 330.2 | 387 | 825 | 146.1 | 469.9 | 704.8 | 66.0 | 16 | 2.1/2" |
| 18 | 371.3 | 438 | 915 | 162.0 | 533.4 | 774.7 | 73.0 | 16 | 2.3/4" |
| 20 | 415.8 | 489 | 985 | 177.8 | 584.2 | 831.8 | 79.3 | 16 | 3" |
| 24 | 498.3 | 591 | 1170 | 203.2 | 692.2 | 990.6 | 92.0 | 16 | 3.1/2" |
| Inch | mm | NB | OD | Ft. | RF | PCD | Hole Dia. | N | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 38.1 | 235 | 50.9 | 92.1 | 171.4 | 28.5 | 8 | 1" |
| 2.5 | 65 | 47.5 | 265 | 57.2 | 104.8 | 196.8 | 31.7 | 8 | 1.1/8" |
| 3 | 80 | 57.2 | 305 | 66.7 | 127.0 | 228.6 | 34.9 | 8 | 1.1/4" |
| 4 | 100 | 72.9 | 355 | 76.2 | 157.2 | 273.0 | 41.2 | 8 | 1.1/2" |
| 5 | 125 | 91.9 | 420 | 92.1 | 185.7 | 323.8 | 47.6 | 8 | 1.3/4" |
| 6 | 150 | 111 | 485 | 108.0 | 215.9 | 368.3 | 53.9 | 8 | 2" |
| 8 | 200 | 146.1 | 550 | 127.0 | 269.9 | 438.2 | 53.9 | 12 | 2" |
| 10 | 250 | 184.2 | 675 | 165.1 | 323.8 | 539.8 | 66.6 | 12 | 2.1/2" |
| 12 | 300 | 218.9 | 760 | 184.2 | 381.0 | 619.1 | 73.0 | 12 | 2.3/4" |
J.R. Industries focuses on delivering dependable industrial valve solutions engineered for controlled flow, throttling and process requirements.
Designed for controlled flow regulation and throttling applications.
Quality-focused valve solutions for demanding industrial service.
Robust construction for dependable operation and service life.
Assistance for valve selection, specifications and application needs.
A globe valve is a linear-motion valve commonly used for regulating, throttling and shutting off fluid flow in industrial piping systems.
J.R. Industries offers Industrial Globe Valve and Forged Steel Globe Valve solutions, with configurations available according to application and customer requirements.
Globe valves are commonly used where flow regulation, throttling and reliable shut-off are required in industrial piping and process systems.
J.R. Industries has a Class 150 Globe Valve configuration listed with plug-type disc, bolted bonnet and threaded or welded connections.
The listed Class 150 Globe Valve specification includes an 80 PSI air seat test, 319 PSI hydrostatic seat test and 450 PSI hydrostatic shell test.
Get in touch with J.R. Industries for globe valve specifications, technical assistance and industrial flow control requirements.
