J.R. Industries offers industrial ball valve solutions designed for dependable shut-off, reliable flow control and efficient operation across demanding process and piping systems.
Ball valves are quarter-turn valves that use a spherical closure element to control or shut off fluid flow. Their compact operating mechanism makes them suitable for applications requiring quick and dependable isolation.
J.R. Industries manufactures and supplies industrial valves under the JR Valves brand, serving demanding industries including Oil & Gas, Chemical, Petrochemical, Pulp & Paper and Energy.
Explore industrial ball valve solutions for dependable shut-off and flow control applications across process, chemical, petrochemical, energy and industrial piping systems.

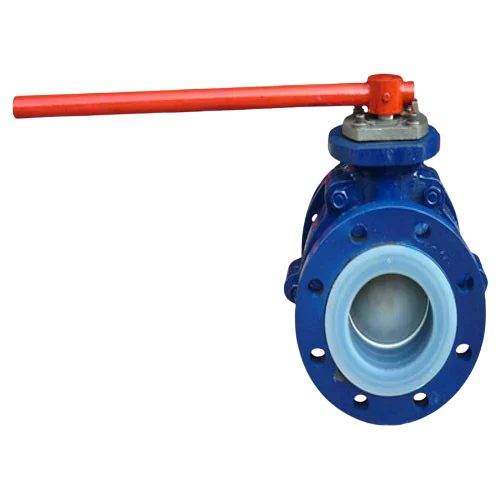

Corrosion-resistant ball valve designed for chemical and industrial fluid handling applications.

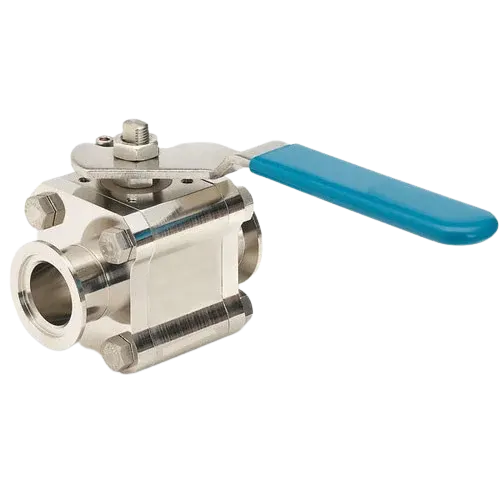

Heavy-duty forged steel valve engineered for reliable performance in demanding industrial applications.

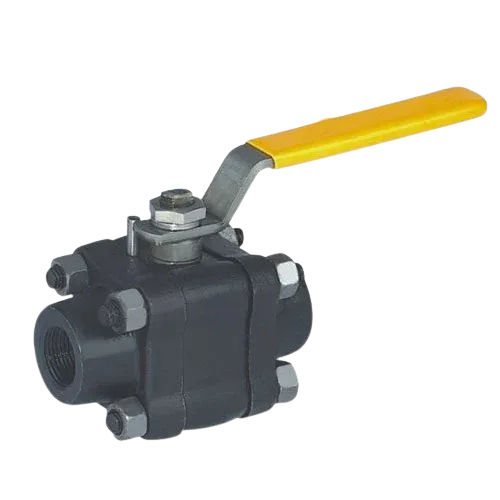

Precision-machined ball valve designed for dependable flow control and industrial process applications.
| Size | L | H |
|---|---|---|
| 1.5" | 165 | 95 |
| 2" | 178 | 110 |
| 2.5" | 190 | 135 |
| 3" | 203 | 145 |
| 4" | 229 | 170 |
| 6" | 394 | 265 |
| 8" | 457 | 310 |
| 10" | 533 | 385 |
| 12" | 610 | 525 |
Design: BS 5351
Testing: BS 6755 - P1
End Connections: B16.5
End to End: B16.10
Shell Test: 32 Kg/cm²
Seat Test: 22 Kg/cm²
Pneumatic: 7 Kg/cm²
| Size | L | H |
|---|---|---|
| 1.5" | 190 | 115 |
| 2" | 216 | 125 |
| 2.5" | 241 | 145 |
| 3" | 282 | 165 |
| 4" | 305 | 195 |
| 6" | 403 | 295 |
| 8" | 502 | 335 |
| 10" | 568 | 385 |
| 12" | 648 | 435 |
Shell: 80 Kg/cm²
Seat: 58 Kg/cm²
Pneumatic: 7 Kg/cm²
10" and above: Trunnion Mounted
| Size | L | H |
|---|---|---|
| 1.5" | 241 | 120 |
| 2" | 292 | 130 |
| 2.5" | 330 | 155 |
| 3" | 356 | 195 |
| 4" | 432 | 245 |
| 6" | 559 | 425 |
| 8" | 660 | 495 |
| 10" | 787 | 545 |
Shell: 155 Kg/cm²
Seat: 115 Kg/cm²
Pneumatic: 7 Kg/cm²
1.5" and above: Trunnion Mounted
6" and above: Gear Operated
| Size | L | H |
|---|---|---|
| 1.5" | 165 | 95 |
| 2" | 178 | 110 |
| 2.5" | 190 | 135 |
| 3" | 203 | 145 |
| 4" | 229 | 170 |
| 6" | 394 | 265 |
| 8" | 457 | 310 |
| Size | L | H |
|---|---|---|
| 1.5" | 190 | 115 |
| 2" | 216 | 125 |
| 2.5" | 241 | 145 |
| 3" | 282 | 165 |
| 4" | 305 | 195 |
| 6" | 403 | 295 |
| 8" | 502 | 335 |
| Size | L | H |
|---|---|---|
| 2" | 178 | 110 |
| 2.5" | 190 | 135 |
| 3" | 203 | 145 |
| 4" | 229 | 170 |
| 6" | 394 | 265 |
| Size | L | H |
|---|---|---|
| 2" | 216 | 125 |
| 2.5" | 241 | 145 |
| 3" | 282 | 165 |
| 4" | 305 | 195 |
| 6" | 403 | 295 |
| Size | L | H |
|---|---|---|
| 2" | 178 | 110 |
| 2.5" | 190 | 135 |
| 3" | 203 | 145 |
| 4" | 229 | 170 |
| 6" | 394 | 265 |
| Size | L | H |
|---|---|---|
| 2" | 216 | 125 |
| 2.5" | 241 | 145 |
| 3" | 282 | 165 |
| 4" | 305 | 195 |
| 6" | 403 | 295 |
| Size | L |
|---|---|
| 2" | 178 |
| 2.5" | 190 |
| 3" | 203 |
| 4" | 229 |
| 6" | 394 |
| 8" | 457 |
| 10" | 533 |
| 12" | 610 |
| 14" | 686 |
| 16" | 762 |
| 18" | 864 |
| 20" | 914 |
| 24" | 1067 |
| Size | L |
|---|---|
| 2" | 216 |
| 2.5" | 241 |
| 3" | 283 |
| 4" | 305 |
| 6" | 457 |
| 8" | 502 |
| 10" | 568 |
| 12" | 648 |
| 14" | 762 |
| 16" | 838 |
| 18" | 914 |
| 20" | 991 |
| 24" | 1143 |
| Size | L |
|---|---|
| 2" | 292 |
| 2.5" | 330 |
| 3" | 356 |
| 4" | 432 |
| 6" | 559 |
| 8" | 660 |
| 10" | 787 |
| 12" | 838 |
| 14" | 889 |
| 16" | 991 |
| 18" | 1092 |
| 20" | 1194 |
| 24" | 1397 |
| Size | L |
|---|---|
| 2" | 368 |
| 2.5" | 419 |
| 3" | 381 |
| 4" | 457 |
| 6" | 610 |
| 8" | 737 |
| 10" | 838 |
| 12" | 965 |
| Size | L |
|---|---|
| 2" | 368 |
| 2.5" | 419 |
| 3" | 470 |
| 4" | 546 |
| 6" | 705 |
| 8" | 832 |
| 10" | 991 |
| 12" | 1130 |
| Size | L |
|---|---|
| 2" | 451 |
| 2.5" | 508 |
| 3" | 578 |
| 4" | 673 |
| 6" | 914 |
| 8" | 1022 |
| 10" | 1270 |
| 12" | 1422 |
| Size | L |
|---|---|
| ½" | 90 |
| ¾" | 110 |
| 1" | 120 |
| 1½" | 150 |
| 2" | 180 |
Screwed: ASME B1.20.1 (NPT/BSP)
Socket Weld: ASME B16.11
Butt Weld: ASME B16.25
Design / Rating: ASME B16.34
| Size | L |
|---|---|
| ½" | 90 |
| ¾" | 110 |
| 1" | 120 |
| 1½" | 150 |
| 2" | 180 |
| ½" | 65 |
| ¾" | 75 |
| 1" | 95 |
| 1½" | 105 |
| 2" | 125 |
| ½" | 92 |
| ¾" | 106 |
| 1" | 127 |
| 1½" | -- |
| 2" | -- |
| ½" | 106 |
| ¾" | 127 |
| 1" | 142 |
| 1½" | -- |
| 2" | -- |
| Part | A216 WCB | A351 CF8 | A351 CF8M |
|---|---|---|---|
| Body | A216 WCB | A351 CF8 | A351 CF8M |
| Ball | SS304 / CF8 | SS304 / CF8 | SS304 / CF8M |
| Seatring | PTFE | PTFE | PTFE |
| Stem | SS304/316 | SS304/316 | SS316 |
| Gland Bush | SS410 / SS304 | SS304 | SS316 |
| Lever | SS with PVC | SS with PVC | SS with PVC |
| Lever Nut | SS202 / 304 | SS304 | SS304 |
| Body Stud/Nut | B7 / 2H | B7 / 2H | B7 / 2H |
| Gasket | PTFE | PTFE | PTFE |
| Gland Packing | PTFE | PTFE | PTFE |
| Bottom Washer | PTFE | PTFE | PTFE |
| End Piece | A216 WCB | A351 CF8 | A351 CF8M |
| Gland Nut | CS | SS304 | SS316 |
J.R. Industries focuses on delivering dependable industrial valve solutions engineered for demanding process, piping and flow control requirements.
Quality-focused manufacturing with attention to product performance and reliability.
Precision valve solutions developed for demanding industrial service requirements.
Robust valve construction intended for dependable long-term industrial operation.
Technical assistance for valve selection, specifications and application requirements.
A ball valve is a quarter-turn industrial valve that uses a spherical closure element to control or shut off fluid flow. It is widely used where quick and dependable isolation is required.
Ball valves are commonly used for flow isolation and shut-off in industrial piping, process plants, chemical systems, oil and gas facilities and other fluid handling applications.
Ball valve configurations can be selected according to application requirements, including industrial, flanged, forged, jacketed and lined configurations where applicable.
Ball valves provide quick quarter-turn operation, dependable shut-off and a compact design, making them suitable for many industrial flow isolation applications.
J.R. Industries serves industrial sectors including Oil & Gas, Chemical, Petrochemical, Pulp & Paper and Energy, with valve solutions selected according to application requirements.
Get in touch with J.R. Industries for ball valve specifications, technical assistance and industrial flow control requirements.
