J.R. Industries offers a comprehensive range of industrial gate valves engineered for reliable shut-off and flow isolation across demanding piping, process and fluid handling applications.

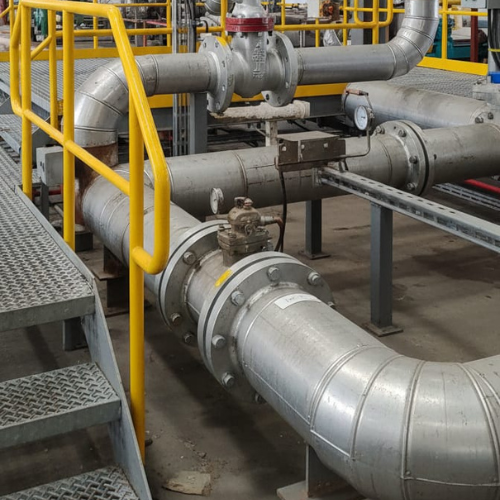

Gate valves are widely used in industrial piping systems where dependable shut-off and full-flow isolation are required. They are designed to provide efficient on-off control with minimal pressure drop when fully open.
J.R. Industries manufactures and supplies a range of gate valves including forged gate valves, cast steel gate valves, flanged gate valves and jacketed gate valves for demanding industrial applications.
Explore our range of industrial gate valves designed for reliable flow isolation across oil & gas, chemical, petrochemical, power and process industries.

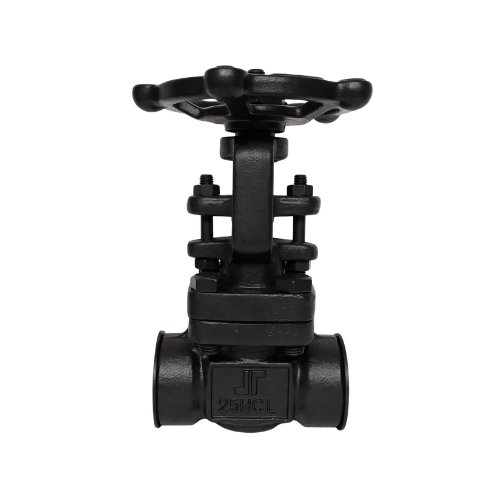

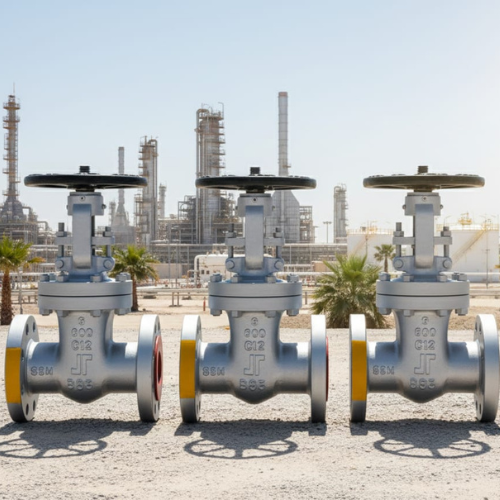

High-strength gate valve designed for demanding pressure and industrial service.

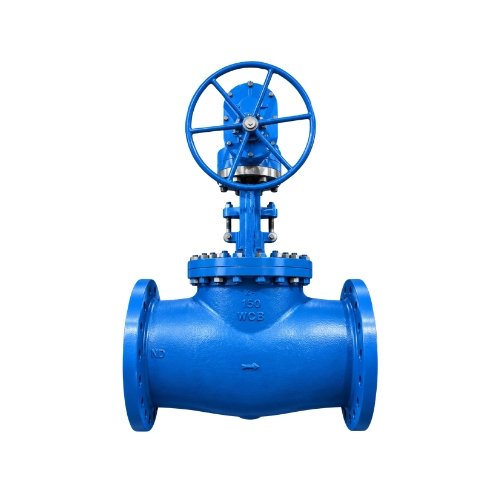

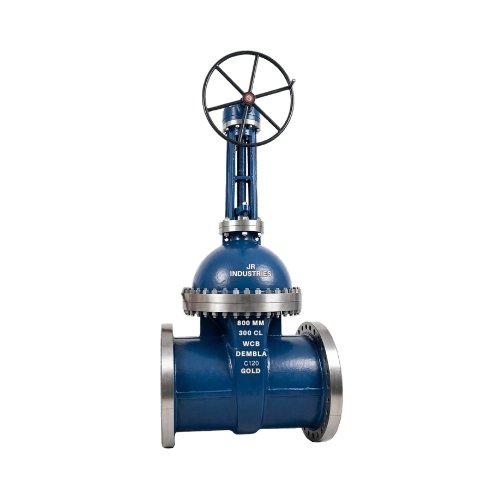

Robust cast steel construction for reliable isolation in industrial piping systems.

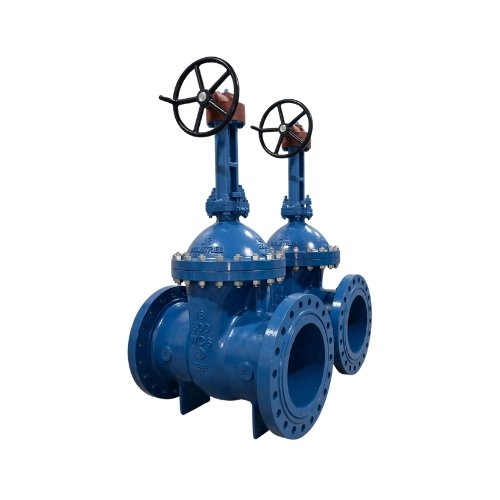

Precisely engineered valve for reliable high-pressure pipeline flow isolation.
Designed for applications requiring thermal control and dependable flow isolation.

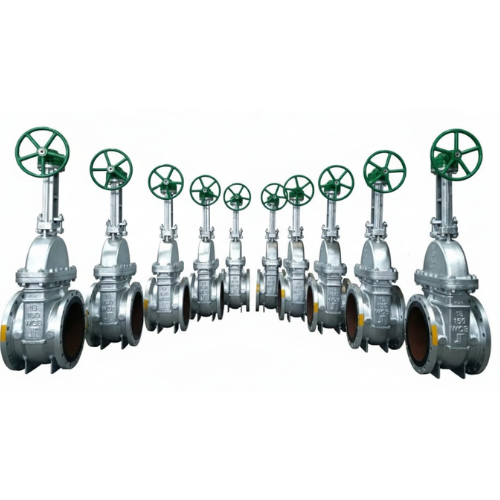

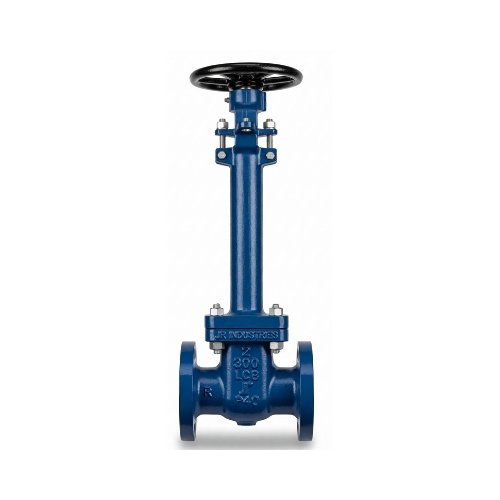

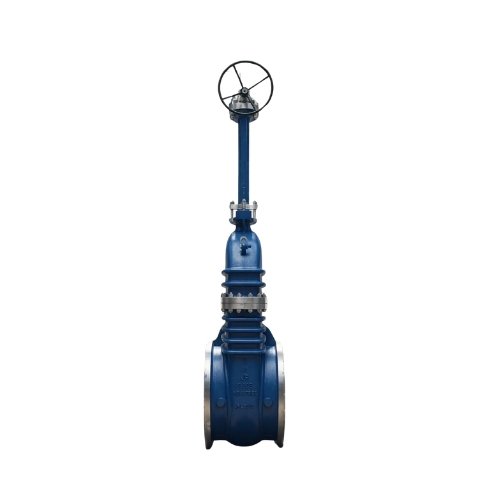

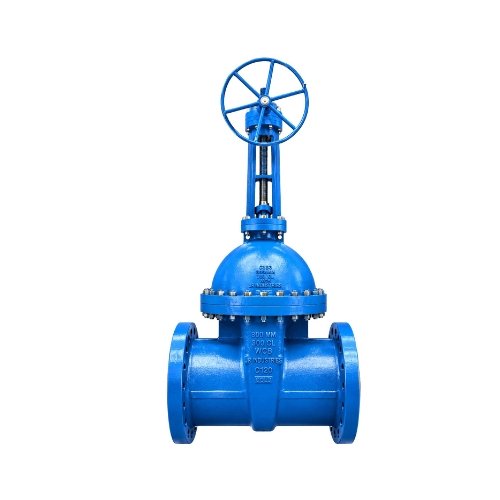

Industrial flow isolation solution for demanding process and pipeline systems.
| Size | L | H | W |
|---|---|---|---|
| 2" | 178 | 367 | 200 |
| 2.5" | 190 | 421 | 200 |
| 3" | 203 | 498 | 250 |
| 4" | 229 | 542 | 250 |
| 5" | 254 | 641 | 300 |
| 6" | 267 | 726 | 300 |
| 8" | 292 | 950 | 350 |
| 10" | 330 | 1160 | 400 |
| 12" | 356 | 1410 | 400 |
| 14" | 381 | 1522 | # |
| 16" | 406 | 1721 | # |
| 18" | 432 | 1935 | # |
| 20" | 457 | 2225 | # |
| 22" | 483 | 2545 | # |
| 24" | 508 | 2655 | # |
| 26" | 559 | 2785 | # |
| 28" | 610 | 3110 | # |
| 30" | 610 | 3250 | # |
| 32" | 711 | 3385 | # |
| 36" | 711 | 3885 | # |
| 42" | 813 | 4315 | # |
| Size | L | H | W |
|---|---|---|---|
| 2" | 216 | 371 | 200 |
| 2.5" | 241 | 403 | 250 |
| 3" | 282 | 485 | 250 |
| 4" | 305 | 562 | 300 |
| 5" | 381 | 673 | 300 |
| 6" | 403 | 752 | 350 |
| 8" | 419 | 1030 | 450 |
| 10" | 457 | 1235 | 600 |
| 12" | 502 | 1421 | # |
| 14" | 762 | 1585 | # |
| 16" | 838 | 1815 | # |
| 18" | 914 | 1953 | # |
| 20" | 991 | 2355 | # |
| 22" | 1092 | 2475 | # |
| 24" | 1143 | 2765 | # |
| Size | L | H | W |
|---|---|---|---|
| 2" | 292 | 406 | 250 |
| 2.5" | 330 | 460 | 250 |
| 3" | 356 | 477 | 300 |
| 4" | 432 | 562 | 350 |
| 5" | 508 | 708 | 400 |
| 6" | 559 | 850 | 500 |
| 8" | 660 | 1127 | 600 |
| 10" | 787 | 1356 | 600 |
| 12" | 838 | 1480 | # |
| 14" | 889 | 1660 | # |
| 16" | 991 | 1825 | # |
| 18" | 1092 | 1992 | # |
| 20" | 1194 | 2385 | # |
| 24" | 1397 | 2535 | # |
| Size | L | H | W |
|---|---|---|---|
| 2" | 368 | 410 | 250 |
| 3" | 381 | 555 | 300 |
| 4" | 457 | 690 | 400 |
| 6" | 610 | 895 | 500 |
| 8" | 737 | 1200 | 600 |
| 10" | 838 | 1575 | 600 |
| 12" | 965 | 1690 | # |
| 14" | 1029 | 2250 | # |
| 16" | 1130 | 2310 | # |
| 18" | 1219 | 2405 | # |
| 20" | 1321 | 2580 | # |
| Size | L | H | W |
|---|---|---|---|
| 2" | 368 | 485 | 250 |
| 3" | 470 | 605 | 350 |
| 4" | 546 | 685 | 400 |
| 6" | 705 | 1020 | 600 |
| 8" | 832 | 1295 | # |
| 10" | 991 | 1385 | # |
| 12" | 1130 | 1510 | # |
| 14" | 1257 | 2085 | # |
| Size | L | H | W |
|---|---|---|---|
| 2" | 451 | 580 | 250 |
| 3" | 578 | 710 | 350 |
| 4" | 673 | 785 | 400 |
| 6" | 914 | 1165 | 600 |
| 8" | 1022 | 1295 | # |
| 10" | 1270 | 1475 | # |
| 12" | 1470 | 1475 | # |
| Parts Name | A216 Gr. WCB | A217 Gr. WC6 | A351 Gr. CF8 / CF8M |
|---|---|---|---|
| Body | A216 Gr. WCB | A217 Gr. WC6 | A351 Gr. CF8 / CF8M |
| Bonnet / Yoke | A216 Gr. WCB | A217 Gr. WC6 | A351 Gr. CF8 / CF8M |
| Wedge | WCB + 13% Cr. / CA15 + Stellited | CA15 + Stellited | A351 Gr. CF8 / CF8M |
| Stem | A276 Type 410 | A276 Type 410 | A276 Type 304 / 316 |
| Seat Ring | C.S. + 13% Cr. / AISI 410 | AISI 410 + ST6 | Integral |
| Back Seat Bush | A276 Type 410 | A276 Type 410 | A276 Type 304 / 316 |
| Gland Bush | A276 Type 410 | A276 Type 410 | A276 Type 304 / 316 |
| Gland Flange | Carbon Steel | Carbon Steel | S.S. |
| Yoke Sleeve | S.G. Iron | S.G. Iron | S.G. Iron |
| Gland Packing | Graphite | Graphite | Graphite |
| Gasket | SPW 316L Graph. | SPW 316L Graph. | SPW 316L Graph. |
| Stud With Nut | B7 / 2H | B16 / 7 | B8 / B8M - 8 / 8M |
| Eye Bolt With Nut | Carbon Steel | Carbon Steel | C.S. + Galvanized |
| Hand Wheel Nut | Carbon Steel | Carbon Steel | Carbon Steel |
| Hand Wheel | S.G. Iron | S.G. Iron | S.G. Iron |
| Cross Pin | Carbon Steel | Carbon Steel | C.S. + Galvanized |
| Grease Nipple | Brass | Brass | Brass |
| Gurb Screw | Carbon Steel | Carbon Steel | Carbon Steel |
| Key | Carbon Steel | Carbon Steel | Carbon Steel |
| Bonnet Nut | Carbon Steel | Carbon Steel | Carbon Steel |
| Inch | mm | NB | OD | Ft. | RF | PCD | Hole Dia. | N | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 50 | 150 | 14.3 | 92.1 | 120.8 | 19.0 | 4 | 5/8" |
| 2.5 | 65 | 63 | 180 | 15.9 | 104.8 | 140.0 | 19.0 | 4 | 5/8" |
| 3 | 80 | 76 | 190 | 17.5 | 127.0 | 152.0 | 19.0 | 4 | 5/8" |
| 4 | 100 | 100 | 230 | 22.3 | 157.2 | 190.5 | 19.0 | 8 | 5/8" |
| 5 | 125 | 125 | 255 | 22.3 | 185.7 | 216.0 | 22.2 | 8 | 3/4" |
| 6 | 150 | 150 | 280 | 23.9 | 215.9 | 241.0 | 22.2 | 8 | 3/4" |
| 8 | 200 | 200 | 345 | 27.0 | 269.9 | 298.5 | 22.2 | 8 | 3/4" |
| 10 | 250 | 250 | 405 | 28.6 | 323.8 | 362.0 | 25.4 | 12 | 7/8" |
| 12 | 300 | 300 | 485 | 30.2 | 381.0 | 432.0 | 25.4 | 12 | 7/8" |
| 14 | 350 | 337 | 535 | 33.4 | 412.8 | 476.0 | 28.5 | 12 | 1" |
| 16 | 400 | 387 | 595 | 35.0 | 469.9 | 540.0 | 28.5 | 16 | 1" |
| 18 | 450 | 438 | 635 | 38.1 | 533.4 | 578.0 | 31.7 | 16 | 1.1/8" |
| 20 | 500 | 489 | 700 | 41.3 | 584.2 | 635.0 | 31.7 | 20 | 1.1/8" |
| 24 | 600 | 591 | 815 | 46.1 | 692.2 | 749.0 | 34.9 | 20 | 1.1/4" |
| Inch | mm | NB | OD | Ft. | RF | PCD | Hole Dia. | N | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 50 | 165 | 20.7 | 92.1 | 127.0 | 19.0 | 8 | 5/8" |
| 2.5 | 65 | 63 | 190 | 23.9 | 104.8 | 149.2 | 22.2 | 8 | 3/4" |
| 3 | 80 | 76 | 210 | 27.0 | 127.0 | 168.3 | 22.2 | 8 | 3/4" |
| 4 | 100 | 100 | 255 | 30.2 | 157.2 | 200.0 | 22.2 | 8 | 3/4" |
| 5 | 125 | 125 | 280 | 33.4 | 185.7 | 235.0 | 22.2 | 8 | 3/4" |
| 6 | 150 | 150 | 320 | 35.0 | 215.9 | 269.9 | 22.2 | 12 | 3/4" |
| 8 | 200 | 200 | 380 | 39.7 | 269.9 | 330.2 | 25.4 | 12 | 7/8" |
| 10 | 250 | 250 | 445 | 46.1 | 323.8 | 387.4 | 28.5 | 16 | 1" |
| 12 | 300 | 300 | 520 | 49.3 | 381.0 | 450.8 | 31.7 | 16 | 1.1/8" |
| 14 | 350 | 337 | 585 | 52.4 | 412.8 | 514.4 | 31.7 | 20 | 1.1/8" |
| 16 | 400 | 387 | 650 | 55.6 | 469.9 | 571.5 | 34.9 | 20 | 1.1/4" |
| 18 | 450 | 438 | 710 | 58.8 | 533.4 | 628.6 | 34.9 | 24 | 1.1/4" |
| 20 | 500 | 489 | 775 | 62.0 | 584.2 | 685.8 | 34.9 | 24 | 1.1/4" |
| 24 | 600 | 591 | 915 | 68.3 | 692.2 | 812.8 | 41.2 | 24 | 1.1/2" |
| Inch | mm | NB | OD | Ft. | RF | PCD | Hole Dia. | N | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 50 | 165 | 25.4 | 92.1 | 127.0 | 19.0 | 8 | 5/8" |
| 2.5 | 65 | 63 | 190 | 28.6 | 104.8 | 149.2 | 22.2 | 8 | 3/4" |
| 3 | 80 | 76 | 210 | 31.8 | 127.0 | 168.3 | 22.2 | 8 | 3/4" |
| 4 | 100 | 100 | 275 | 38.1 | 157.2 | 215.9 | 25.4 | 8 | 7/8" |
| 5 | 125 | 125 | 330 | 44.5 | 185.7 | 266.7 | 28.5 | 8 | 1" |
| 6 | 150 | 150 | 355 | 47.7 | 215.9 | 292.1 | 28.5 | 12 | 1" |
| 8 | 200 | 200 | 420 | 55.6 | 269.9 | 349.2 | 31.7 | 12 | 1.1/8" |
| 10 | 250 | 250 | 510 | 63.5 | 323.8 | 431.8 | 34.9 | 16 | 1.1/4" |
| 12 | 300 | 300 | 560 | 66.7 | 381.0 | 489.0 | 34.9 | 20 | 1.1/4" |
| 14 | 350 | 337 | 605 | 69.9 | 412.8 | 527.0 | 38.1 | 20 | 1.1/8" |
| 16 | 400 | 387 | 685 | 76.2 | 469.9 | 603.2 | 41.2 | 20 | 1.1/2" |
| 18 | 450 | 438 | 745 | 82.6 | 533.4 | 654.0 | 44.5 | 20 | 1.5/8" |
| 20 | 500 | 489 | 815 | 88.9 | 584.2 | 723.9 | 44.5 | 24 | 1.5/8" |
| 24 | 600 | 591 | 940 | 102 | 692.2 | 838.2 | 50.8 | 24 | 1.1/2" |
| Inch | mm | NB | OD | Ft. | RF | PCD | Hole Dia. | N | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 47.5 | 215 | 38.1 | 92.1 | 165.1 | 25.4 | 8 | 7/8" |
| 2.5 | 65 | 57.2 | 245 | 41.3 | 104.8 | 190.5 | 28.5 | 8 | 1" |
| 3 | 80 | 72.9 | 240 | 38.1 | 127.0 | 190.5 | 25.4 | 8 | 7/8" |
| 4 | 100 | 98.3 | 290 | 44.5 | 157.2 | 235.0 | 31.7 | 8 | 1.1/8" |
| 5 | 125 | 120.7 | 350 | 50.8 | 185.7 | 279.4 | 34.9 | 8 | 1.1/4" |
| 6 | 150 | 146.1 | 380 | 55.6 | 215.9 | 317.5 | 31.7 | 12 | 1.1/8" |
| 8 | 200 | 190.5 | 470 | 63.5 | 269.9 | 393.7 | 38.1 | 12 | 1.3/8" |
| 10 | 250 | 238.0 | 545 | 69.9 | 323.8 | 469.9 | 38.1 | 16 | 1.3/8" |
| 12 | 300 | 282.4 | 610 | 79.4 | 381.0 | 533.4 | 38.1 | 20 | 1.3/8" |
| 14 | 350 | 311.2 | 640 | 85.8 | 412.8 | 558.8 | 41.2 | 20 | 1.1/2" |
| 16 | 400 | 355.6 | 705 | 88.9 | 469.9 | 616.0 | 44.4 | 20 | 1.5/8" |
| 18 | 450 | 400.0 | 785 | 101.6 | 533.4 | 685.8 | 50.8 | 20 | 1.7/8" |
| 20 | 500 | 444.0 | 855 | 108.0 | 584.2 | 749.3 | 53.9 | 20 | 2" |
| 24 | 600 | 533.4 | 1040 | 139.7 | 692.2 | 901.7 | 66.6 | 20 | 2.1/2" |
| Inch | mm | NB | OD | Ft. | RF | PCD | Hole Dia. | N | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 47.5 | 50 | 215 | 38.1 | 92.1 | 165.1 | 25.4 | 8 | 7/8" |
| 2.5 | 57.2 | 63 | 245 | 41.3 | 104.8 | 190.5 | 28.5 | 8 | 1" |
| 3 | 70 | 76 | 265 | 47.7 | 127.0 | 203.2 | 32.0 | 8 | 1.1/8" |
| 4 | 92 | 100 | 310 | 54.0 | 157.2 | 241.3 | 35.0 | 8 | 1.1/4" |
| 5 | 111 | 125 | 375 | 73.1 | 185.7 | 292.1 | 41.2 | 8 | 1.1/2" |
| 6 | 136.4 | 150 | 395 | 82.6 | 215.9 | 317.5 | 38.0 | 12 | 1.3/8" |
| 8 | 177.8 | 200 | 485 | 92.1 | 269.9 | 393.7 | 44.4 | 12 | 1.5/8" |
| 10 | 222.3 | 250 | 585 | 108.0 | 323.8 | 482.6 | 50.8 | 12 | 1.7/8" |
| 12 | 263.4 | 300 | 675 | 123.9 | 381.0 | 571.5 | 54.0 | 16 | 2" |
| 14 | 288.8 | 337 | 750 | 133.4 | 412.8 | 635.0 | 60.0 | 16 | 2.1/4" |
| 16 | 330.2 | 387 | 825 | 146.1 | 469.9 | 704.8 | 66.0 | 16 | 2.1/2" |
| 18 | 371.3 | 438 | 915 | 162.0 | 533.4 | 774.7 | 73.0 | 16 | 2.3/4" |
| 20 | 415.8 | 489 | 985 | 177.8 | 584.2 | 831.8 | 79.3 | 16 | 3" |
| 24 | 498.3 | 591 | 1170 | 203.2 | 692.2 | 990.6 | 92.0 | 16 | 3.1/2" |
| Inch | mm | NB | OD | Ft. | RF | PCD | Hole Dia. | N | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 38.1 | 235 | 50.9 | 92.1 | 171.4 | 28.5 | 8 | 1" |
| 2.5 | 65 | 47.5 | 265 | 57.2 | 104.8 | 196.8 | 31.7 | 8 | 1.1/8" |
| 3 | 80 | 57.2 | 305 | 66.7 | 127.0 | 228.6 | 34.9 | 8 | 1.1/4" |
| 4 | 100 | 72.9 | 355 | 76.2 | 157.2 | 273.0 | 41.2 | 8 | 1.1/2" |
| 5 | 125 | 91.9 | 420 | 92.1 | 185.7 | 323.8 | 47.6 | 8 | 1.3/4" |
| 6 | 150 | 111 | 485 | 108.0 | 215.9 | 368.3 | 53.9 | 8 | 2" |
| 8 | 200 | 146.1 | 550 | 127.0 | 269.9 | 438.2 | 53.9 | 12 | 2" |
| 10 | 250 | 184.2 | 675 | 165.1 | 323.8 | 539.8 | 66.6 | 12 | 2.1/2" |
| 12 | 300 | 218.9 | 760 | 184.2 | 381.0 | 619.1 | 73.0 | 12 | 2.3/4" |
J.R. Industries focuses on delivering dependable industrial valve solutions engineered for demanding flow isolation and process requirements.
Quality-focused valves designed for dependable industrial service.
Precision-engineered designs for demanding flow isolation applications.
Robust construction for reliable operation and long service life.
Technical assistance for valve selection, specifications and requirements.
A gate valve is an industrial isolation valve designed to start or stop fluid flow by lifting or lowering a gate inside the valve body.
J.R. Industries offers Forged Gate Valves, Cast Steel Gate Valves, Flanged Gate Valves and Jacketed Gate Valves.
Gate valves are commonly used in oil and gas, chemical, petrochemical, power, process and industrial pipeline applications where dependable flow isolation is required.
Depending on the valve design, J.R. Industries references standards including API 600, ANSI B16.10, ANSI B16.5, ANSI B16.25 and API 598.
Get in touch with J.R. Industries for gate valve specifications, technical assistance and industrial valve requirements.
